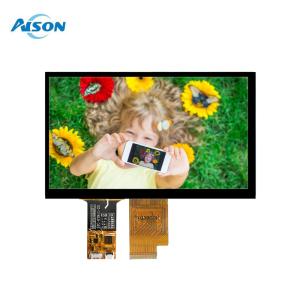

7 inch 1024x600 LVDS IPS TFT LCD Display USB I2C Interface Capacitive Touch Panel
Z070WS37-CT is a 7 inch 1024x600 TFT IPS display with LVDS interface and with USB and I2C Interface Capacitive Touch Panel.
The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an IPS viewing direction 85/85/85/85. The brightness ranges from 400 nits to 450 nits.
This 7 inch LVDS TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.
General Data
| Product Name | 7 inch IPS USB TFT Touch Display |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm | 180x120x7.6 |
| Display Area (W*H)mm | 154.21 x 85.92 |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 400 cd/m2 |
| Pin number | 40 pin |
| Contrast Ratio | 700:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
TFT Applications:
This 7-inch IPS tft display module is ideal for various medical and industrial control applications. It is used in medical instruments, diagnostic devices, industrial automation robots, control panels, and maintenance equipment. These 7 inch USB touch displays are integral in presenting diverse medical, control, and maintenance data and information, providing clear, reliable visual output in demanding environments. This makes them essential components in medical and industrial control systems, enhancing both functionality and user experience.
