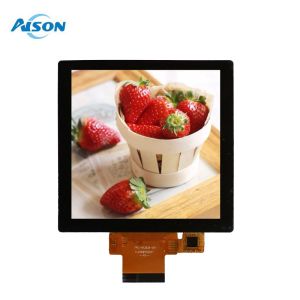

4 inch Square TFT Display 480x480 with RGB Interface with Touch Display for Smart Home 86 Box
This 4-inch square LCD module features the ST7701 driver IC and supports MIPI interface connectivity.
With a 480x480 RGB pixel resolution on a black background, it delivers an exceptional visual experience.
The module offers a brightness of 400 cd/m² with a capacitive touchscreen, ensuring clear visibility in various lighting conditions and providing optimal viewing comfort.
It operates within a temperature range of -20°C to +70°C and can be stored in temperatures from -30°C to +80°C.
General Data
| Model Name | 4 Inch Square TFT LCD Display |
| Resolution | 480X480 |
| Model Size (W*H*T) | 84*84*3.05 mm |
| Display Area (W*H)mm | 71.86 (H) X 70.18 (V) |
| Interface | 3SPI+RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | All/IPS |
| Brightness | 400 cd/m2 |
| Pin number | 40 |
| Drive IC | ST7701S |
| Touch | Capacitive Touch Panel |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This square TFT LCD panel is particularly well-suited for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.The 3.95 inch square form factor makes it a versatile display solution for a variety of compact and portable devices.
